Especially Designed for applications where down-time and panel space is critical.

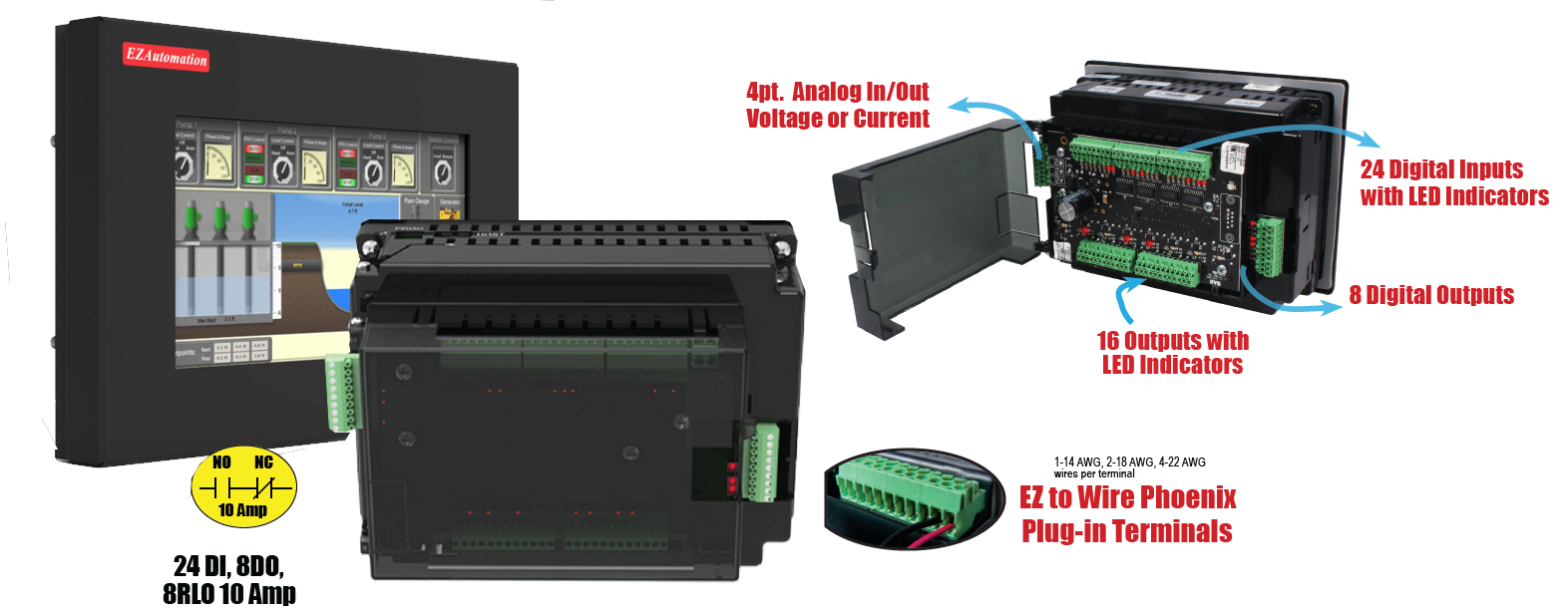

Only HMI w. Detachable Hot-swappable 6”, 7”, 8”, 10”, 15” Displays. 24 DC inputs, 8 short circuit proof DC outputs, 8 Relay outputs NO/NC 10 A with built-in snubbers. Optional 4 Analog In & 4 Analog Out.
Unique product no one else has.
EXCEPTIONALLY INNOVATIVE
All plant/maintenace/control engineers know that the weakest component in any HMI is touchscreen and display. As these are subject to a lot more wear and tear as compared to the rest of logic and communication electronics. That is the intention behind breaking the two into two parts. The touchscreen and display and the back panel with logic and communication. If the touch screen and/or display needs to be replaced, all it takes is two minutes to unscrew the damaged front panel and replace it with a new one. No re-wiring, no loading a new program, no IP setup.
MINIMUM DOWN TIME!

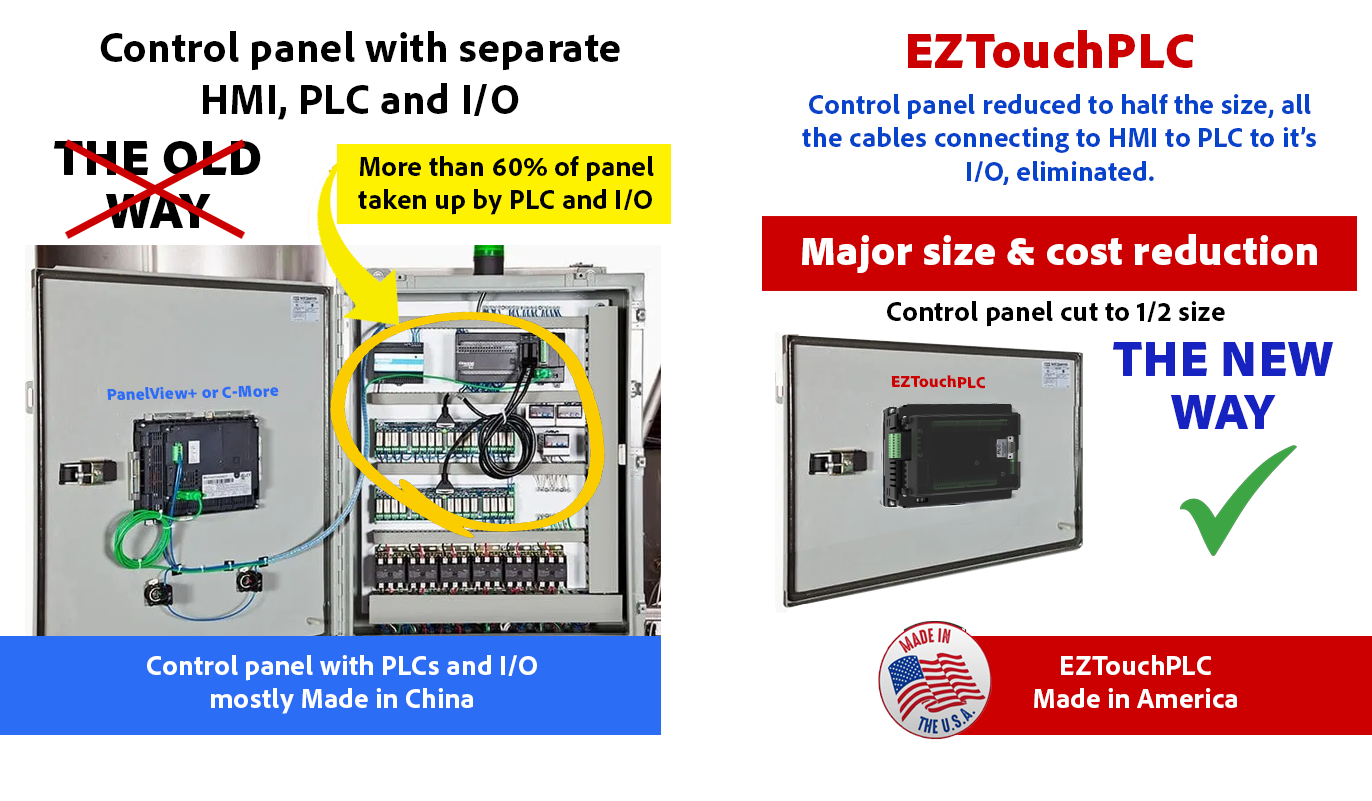

In addition, door of the control cabinet does not need a large rectangular cutout. Instead, only a 3/4“ hole is needed for the the HDMI cable connecting the front panel to the back panel. Also, the back panel could be mounted 3’ away to give the control engineer flexibility in HMI mounting. Many EZ7 customers find it convenient to mount the back panel on a different side of EZ7 enclosure or control cabinet. This special EZ7 HDMI 3 foot cable (EZ7-CBL-HDMI3) needs to be ordered separately.
PROGRAMMING SOFTWARE $171 One time buy FREE lifetime upgrades
Programming so EZ and Intuitive, that even your CEO can do it in minutes
Program this screen in less than 10 minutes. No training classes required.
Troubleshooting a PLC system, it is going to be difficult trying to remember the correct syntax of a particular PLC. It is in this context the EZPLC Drag-n-Drop software was developed. It is essentially a graphical language. You draw the ladder intuitively.
No complicated syntax and rules. It can be learned in a few minutes. Tens of thousands of users learned this software without having to ever attend a class.
EZTouch and EZPLC Introduced in 2001, constantly upgraded, has been used by more than 100,000 automation engineers. Here is what some of them have to say about EZTouch and EZPLC:
Plant Engineer of a Fortune 500 Plant manufacturing consumer products, IL
On-line edit feature of EZTouch HMIs has been a god-send as it allows us to change the screen design without shutting down the machine during initial set-up and trial of a new packaging line.
Chief Controls Engineer, Manufacturer of Environmental chambers, IL
We have used almost 200 EZ3 HMIs and EZPLCs from EZAutomation per year for the last 25 years, ever since EZAutomation came into existence. We have gone through some rough times but their technical support, application support and willingness to modify software quickly, is superb and the fact that they manufacture everything right in the US is great. We have had no issues of delivery during all this period.
Plant Manager of a Large Automotive plant in KY.
Ability to communicate via DH+ and also Ethernet IP at the same time allowed us to use AVG’s HMIs without having to spend millions of dollars to change from PLC 5 to ControlLogix all at once. We also appreciate the fact that AVG’s products are manufactured in US allowing for a quick response to changes.
Service Manager of one of the largest manufacturers of heavy duty winding machines in the Midwest.
Thank God for the EZ3 EZTouch to replace the EA9 obsoleted by Automation Direct. We have thousands of our machines in the field dating back to more than 10 years using 6” to 15” display sizes and CM5 with its limitations is questionable. So we opted for EZTouch and also appreciate the fact that it is made in America so that we can have peace of mind and not have to worry about Supply Chain and Tariff issues. Free program conversion was an added bonus.
Whereas there are other integrated HMI and PLC products from some other suppliers, there is none like EZ3 TouchPLC, EZ3 Jr. TouchPLC, EZ7 TouchPLC, that have the incredibly powerful and wide selection of world class plug-in I/O modules, 35 in total.
FEATURES NOT AVAILABLE IN ANY OTHER INTEGRATED HMI AND PLC
EZ7 requires only a 3/4th in. hole for mounting. The detachable touchscreen and display is hot swappable, you can also increase the size of the display, it automatically re-scales. The detachable front can be replaced in <2 min. without disconnecting any wires or reloading the user program. It is great for rough environments where the HMI screen goes bad frequently or simply a portion of touchscreen worn out because of excessive use.
1. Detachable and Hot-Swappable Touchscreen/Display
2. Patented On-Line HMI Screen Edit Allows HMI Program Edit with Zero Downtime
3. EZ mini Wifi Allows Program/Edit from 50ft away without Programming Cable.
4. OEM Utility Allows Field Upgrade of User Program over Email or FTP Server without the need of Programming Software
5. Superior Quality: Each Unit Goes Through a 24Hr Burn-in at an Elevated Temperature of 50°C as well as a HASS (Highly Accelerated Stress Screening).
6. Visibility tag for each object allows significant reduction in total number of screen.
7. Real-time remote monitoring of process data saves many trips.
8. Dual PLC Drivers with automatic tag conversion.
9. Extremely compact world class PLC in 5.75x4.8x3.1" package. Most maintenance friendly with all plug-in connectors and LED indicators next to each IO.
7" Display w. 44 I/O digital, analog and relays, $1206
10. 8 Auto-tuned PID loops.
11. 40µsec screw-to-screw response to interrupts.
12. Most intuitive Syntax free, free flow ladder logic software that saves 50% of rungs
Detachable Touchscreen/display mounted in a NEMA 4/4X metal enclosure for quick replacement as well as more rugged construction for touchscreen. 7", 8", 10" 12" models. 15" to be introduced soon.
400 Nits, 75K Hours @ 55C
65K colors
2 Serial Ports
Ethernet
2 USB
microSD
.090” Thick Touchscreen
C-Level Scripting
Email/Tech Alerts
Data Logging
Remote Monitoring and Control over Internet or Smart Phones
Unicode for Multiple Languages
On Screen Recipe Edit
Real Time Access to Process Data Stored Inside
View Multiple HMIs in Multiple Plants using EZPlantview Software
Full Project Simulation on your PC
On Screen Recipe Edit
Unique Visibility Tag for Best Screen Space Utilization
Most Advanced Alarm Management and Logging
Free Chart Recorder
Unicode for Multiple Languages
Communication with DH+/Remote IO from Rockwell
Highest Processing power per cubic inch.
3 ms scan time for 1000 instructions including overhead.
Highest Reliability and Noise Immunity in industry.
High end PLC comparable to CompactLogix with 32 I/O is almost free.
8 DC outputs rated at 500 mA with surge capacity at 1A short circuit proof.
8 Relay outputs with NO/NC contacts rated 10A with built-in snubber for each contact.
Easiest Drag-n-Drop programming software.
Free Flow Logic cuts down number of rungs by at least 50%.
Communications galore, DeviceNet, Profibus, all Industrial Ethernet protocols, Ethernet/IP, Modbus TCP/IP, Siemens ISO, GE SRTP.
Advanced functionalities, Math, High Speed counters.
32 bit Floating point Math and Logic.
8 Auto tuned PID loops and unique PID monitor.
Highest processing speed, 40µs response to Interrupt.
Drum Sequencer, and send to marquee instruction.
Advanced instructions and function blocks: Data convert, move block, bit move, strings and subroutines.
Password protection for OEM/SI investment.
Flash Memory Module to upload program without laptop, software or cable.
Status LED for each I/O in every model and Plug-in Terminal Blocks.
