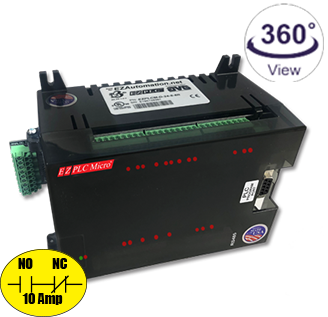

EZPLCMicro: 24DI, 8 DCO,8 10A Relays, 4ANI, 4 ANO for $516 3 for 1 for any PLC from Automation Direct
EZPLCMicro is a low cost, most compact high performance PLC. Drag-n-drop free flow ladder programming cuts down the number of rungs by 50%. Its built in snubbers for all 16 10 A relays contacts eliminate the need for up to 16 external snubbers costing $32 per snubber. Short Circuit Proof DCO’s eliminate need for external components costing $74 per Output.
3 EZPLCMicro for the price of any of one ADC PLC including Click.
Free Flow Drag-n-Drop Programming Software 1 time Buy for $137, Free upgrade for life.
Troubleshooting a PLC system, it is going to be difficult trying to remember the correct syntax of a particular PLC. It is in this context the EZPLC Drag-n-Drop software was developed. It is essentially a graphical language. You draw the ladder intuitively.
No complicated syntax and rules. It can be learned in a few minutes. Tens of thousands of users learned this software without having to ever attend a class.
EZPLC Introduced in 2005, constantly upgraded, has been used by more than 40,000 automation engineers. Here is what some of them have to say about EZPLC:
Chief Controls Engineer, Manufacturer of Environmental chambers, IL
We have used almost 200 EZ3 HMIs and EZPLCs from EZAutomation per year for the last 25 years, ever since EZAutomation came into existence. We have gone through some rough times but their technical support, application support and willingness to modify software quickly, is superb and the fact that they manufacture everything right in the US is great. We have had no issues of delivery during all this period.
FEATURES NOT AVAILABLE IN ANY OTHER PLC
1. Extremely compact high end PLC with 24 DC inputs, 8 10 1FormC 10 Amp relays, 8 short circuit proof DC outputs, 4 12 bit Analog inputs and 4 12 bit Analog outputs, in 5.75x4.8x3.1" package. Most maintenance friendly with all plug-in connectors and LED indicators next to each IO.
2. Each relay contact has a snubber network to eliminate high voltage inductive kicks from the control system.
3. Each DC output is short circuit proof and rated at 500mA and can handle up to 1Amp surge, eliminating the need for external solid state relays and fast acting fuses.
4. 8 Auto-tuned PID loops.
5. Most intuitive Syntax free, free flow ladder logic software that saves 50% of rungs
<
HERE’S WHAT YOU GET WITH EZPLC Micro:
48 total I/O (24 Digital Input, 8 Digital short circuit proof Outputs 500mA each with surge current of 1 Amp, 8 Relay outputs 10A NC/NO with snubbers, 4 Analog In, and 4 Analog Out, voltage or current)
Highest Processing power per cubic inch.
5 ms scan time for 1000 instructions including overhead.
Highest Reliability and Noise Immunity in industry.
Lowest cost high end PLC with base of 48 rugged I/O.
2-3 EZPLC Micro’s for the cost of 1 Automationdirect equivalent PLC.
Easiest Drag-n-Drop programming software.
Free Flow Logic cuts down number of rungs by at least 50%.
Advanced functionalities, Math, High Speed counters.
32 bit Floating point Math and Logic.
8 Auto tuned PID loops and unique PID monitor.
Drum Sequencer, and send to marquee instruction.
RS422/485 Modbus Master Port.
Advanced instructions and function blocks: Data convert, move block, bit move, strings and subroutines.
Password protection for OEM/SI investment.
Status LED for each I/O in every model and Plug-in Terminal Blocks.
Caution: EZPLC Micro does not have battery back-up, so there is no real-time clock. However it takes the RTC information from the EZTouch HMI connected to it.
