  • 24 DC In, 8 DC Out, 8 of 10 Amp 1 Form C Relay Outputs, 12-bit 4 Analog In & 4 Analog Out, High Speed Counter Input and RS 485 expansion port @ $339 makes EZPLC Micro a "Bench Mark" for all mid-size PLCs against which all others are measured.
  • Highest Processing power per cubic inch.
  • Highest Reliability and Noise Immunity in industry. Watch the video and have fun!
  • 3-4 EZPLC Micro for the cost of 1 Automationdirect equivalent PLC.
  • Easiest Drag-n-Drop programming software for $69
  • Free Flow Logic cuts down number of rungs by at least 50%
  • Advanced functionalities, Math, High Speed counters.
  • 32 bit Floating point Math and Logic
  • 8 Auto tuned PID loops and unique PID monitor
  • Drum Sequencer, and send to marquee instruction
  • Advanced instructions: Data convert, move block, bit move, strings and subroutines
  • Password protection for OEM/SI investment
  • Status LED for each I/O in every model and Plug-in Terminal Blocks.

EZPLC Micro Features & Benefits

24 DC In, 8 DC Out, 8 of 10 Amp 1 Form C Relay Outputs, 12-bit 4 Analog In & 4 Analog Out, High Speed Counter Input and RS 485 expansion port @ $339 makes EZPLC Micro a "Bench Mark" for all mid-size PLCs against which all others are measured.

No other PLC has the same horse power and specifications as that of EZPLC Micro. Besides the powerful functionality you will see below, it's 10 Amp NO/NC 1 Form C relay outputs are simply unmatched. We have looked and looked at hundereds of PLCs in the market and there simply is no other PLC that has on board 10 Amp relay outputs.

It's 48 I/O combination of Digital I/Os, High Speed Counter Inputs, Digital Outputs and 8 12-bit Analog I/Os makes EZPLC Micro a "Bench Mark" standard against which all other PLCs are measured.

Highest Processing power per cubic inch.

EZPLC Micro's are uniquely compact, living up to the AVG theme of “Maximum Processing Power per cubic inch”. AVG is a vertically integrated company with in-house capability of high density PCBs, thick film hybrids, flexible boards and semiconductors allowing us to be extremely innovative. EZPLC Micro has 8192 Registers, 64 KB of program memory, Flash memory, along with a rich and powerful instruction set of 32 bit floating point math and function blocks.

3-4 EZPLC Micro's ($339) for the cost of 1 Automationdirect equivalent PLC.

PLCDirect before it became AutomationDirect in 2000 made its name by offering 2 for 1, that is two of their PLCs for one of Allen Bradley. In every bench mark, now you can get three to four of EZPLC Micro's for one of theirs, and ours are Designed and Made in America, but shipped to you Factory Direct to save you the 50+% of mark-up of the national importer. For more details check the comparisons. For example, you can configure a semi equivalent Click PLC for $753 but it would have only 8 Amp relay outputs without snubbers. This Click PLC with a zip link and external relay board will require 3 times the space as compared to EZPLC Micro. You could also get a DL205/Do-more again 3 times the space for $1375. ** ADC no longer recommends use of DL06.

8 Auto tuned PID loops and unique PID monitor

 EZPLC Micro not only has 8 Auto tuned PID loops, it has a unique PID monitor that gives you a graphical representation of the process being controlled by the PID.

Drum Sequencer, and send to marquee instruction

EZPLC Micro has a unique drum sequencer function which will control the outputs sequentially either time based or event based.
Send to Marquee instruction allows the EZPLC Micro to generate an ASCII string and send it to a Marquee connected to the EZPLC Micro

Advanced instructions: Data convert, move block, bit move, strings and subroutines

EZPLC Micro has all the Advanced Instructions usually found only in PLC costing 10 times more.

Password protection for OEM/SI investment

This exceptionally Innovative feature allows an OEM or SI to protect his investment in the PLC program by requiring the program to be password protected so that the program cannot be viewed, edited or copied.

Highest Reliability and Noise Immunity in industry.

EZPLC Micro has been designed to meet the HALT/HASS standards that are used for electronic products used in the space program for shuttle launch, which means high shock and vibration along with thermal shock. In addition, the EZPLC Micro has a very high immunity to noise.

Watch the EZPLC Micro Video, see it covered with an oil spray under heavy shock and vibration, high temperature and electrical noise from welding guns, without missing a beat.

Easiest Drag-n-Drop programming software with Advanced math, PID, and Function blocks, for $69

Programming software is extremely powerful yet simple. It is intuitive, and has already been used by tens of thousands of engineers without ever attending a class. Buy a Starter Kit with Programming Software almost free, and experience it yourself.

Free Flow Logic to cut down number of rungs

Unrestricted free flow logic allows the number of rungs in typical PLC program to cut down number of rungs by half.

Status LED for each I/O in every model and Plug-in Terminal Blocks.

We have served the Automation industry since 1968. In fact, one of the AVG divisions, Uticor is the inventor of PLCs themselves. We have been around the block and totally understand the value of maintenance and down time in a manufacturing plant. We always make troubleshooting as convenient and EZ as possible. That is why, all our IO points have an LED right next to the output terminal and the terminal block is always Ezily removable and plug-in.

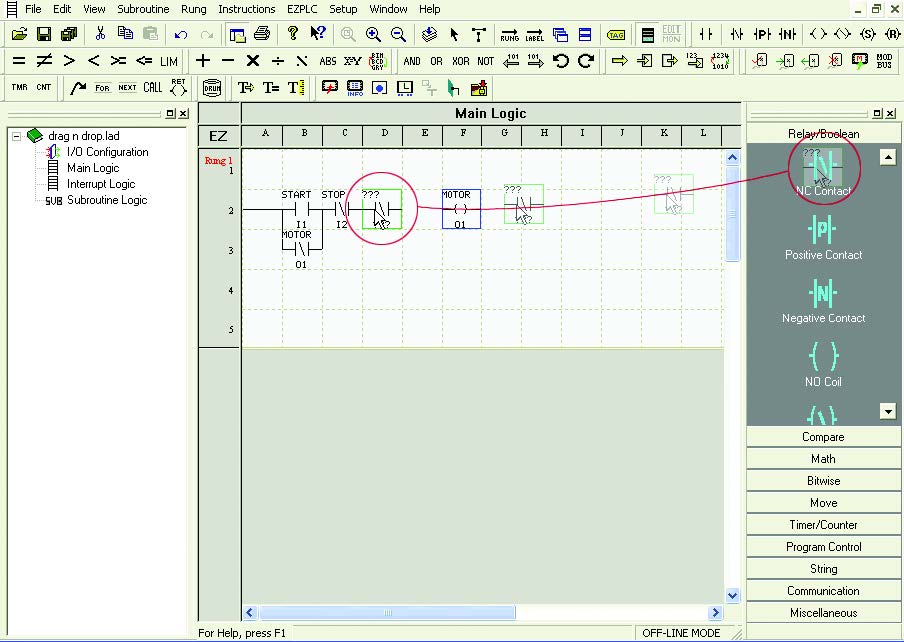

Almost Free, Drag-n-Drop Software

When PLCs came into existence, the PLC manufacturers followed the same convention as in relay ladder logic, however each manufacturer chose their own rules for connecting and adding ladder elements, such as start and stop contacts. Just like English, Spanish, German, Chinese, Hindi and other languages have their own scripts and their own grammar, PLC manufacturers like AB, Modicon, Siemens, Mitsubishi, Uticor and others developed their own grammar and syntax. Once you learned one language, you usually stuck with that brand of PLC.
Today, one single plant is likely to have multiple brands of PLCs, requiring Electricians & Maintenance personnel to remember these multiple languages. One may have learned AB Language months ago, but had not gotten a chance to use it. Troubleshooting the PLC system months later, it is going to be difficult trying to remember the correct syntax. If it is a Siemens PLC, it might take the same person a week to just get started. It is in this context the EZPLC Drag-n-Drop software was developed. It is essentially a graphical language. You draw the ladder intuitively.

No complicated syntax and rules. It can be learned in a few minutes. Tens of thousands of users learned this software without having to ever attend a class.

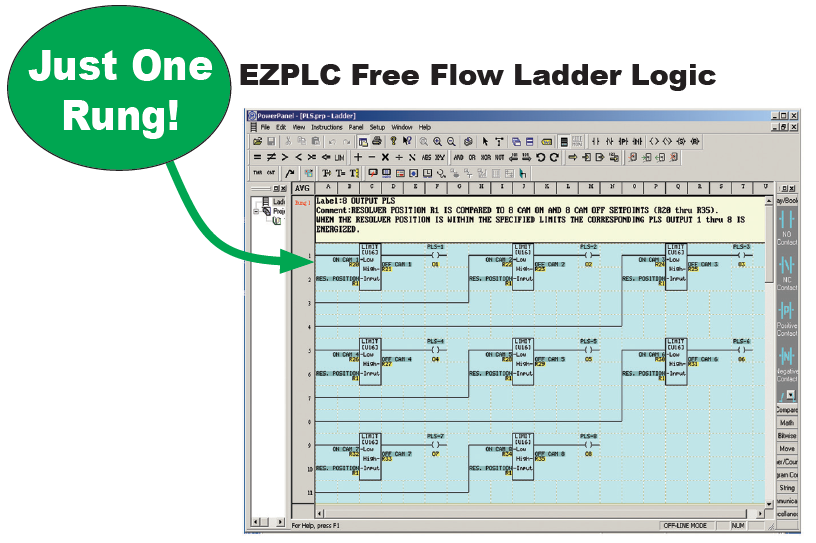

Unique Patent Pending Free Flow Logic

The concept of this patent pending Free Flow Ladder Logic is to create less restricted rungs of logic. This saves the user rung space and valuable scan time. On the right you will see an example of Free Flow Ladder-Logic. As you can see the Free Flow logic allows logic to be placed and connected anywhere in the rung rather than creating a new rung. This allows the user to spend more time on other parts of the machine development and let the CPU do more of the work of solving the logic.


Watch the EZPLC Nano Video, see it covered with an oil spray under heavy shock and vibration, high temperature and electrical noise from welding guns, without missing a beat.
