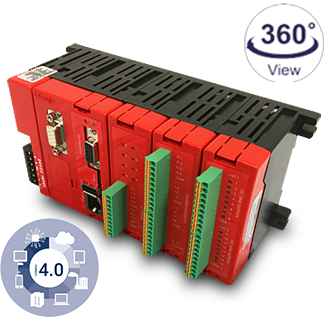

EZRackPLC is a low cost, most compact, modular and flexible High Performance PLCs that is comparable to CompactLogix. It has choice of 17 different traditional rack-mount plug-in most maintenance friendly IO modules. Drag-n-drop free flow ladder programming cuts down the number of rungs by 50%. It's HC high current module capable of handling 3 Amp surge and still short circuit proof, saves at least $74 per output in external components.
2 EZRackPLCs for the price of one Domore or BRX.
It has MQTT and IIOT. Also it is an Ethernet IP Master.
Free Flow Drag-n-Drop Programming Software Free with Free upgrade for life.
Troubleshooting a PLC system, it is going to be difficult trying to remember the correct syntax of a particular PLC. It is in this context the EZPLC Drag-n-Drop software was developed. It is essentially a graphical language. You draw the ladder intuitively.
No complicated syntax and rules. It can be learned in a few minutes. Tens of thousands of users learned this software without having to ever attend a class.
FEATURES NOT AVAILABLE IN ANY OTHER PLC
1. EZRackPLC with Ethernet/IP scanner
EZRackPLCs have a unique feature in that it allows it to be the EtherNet Scanner/Master. That means it can be used as a Master controller for initiating communication with any EtherNet/IP compatible devices such as EtherNet/IP Encoders from Autotech Controls or EtherNet compatible powerflex AC drives or EtherNet temperature controller etc.
2. High performance PLC at a higher level than the CompactLogix PLC, and with most Most maintenance friendly IO with all plug-in connectors and LED indicators next to each IO.
3. Ultimate flexibility with 17 different 16 pt. modules
4. 8 Auto-tuned PID loops.
5. 40 µsec screw-to-screw response to interrupts.
6. IIoT/MQTT Ready
7. 2.4 ms scan time for 1000 instructions including all overhead.
8. 3 Amp short circuit proof DC outputs capable of handling 4 Amp Surge that help eliminate the need of external solid state relays and fuses.
8. Most intuitive Syntax free, free flow ladder logic software that saves 50% of rungs
<
HERE’S WHAT YOU GET WITH EZ RackPLC:
Highest Processing power per cubic inch.
2.4 ms scan time for 1000 instructions including overhead.
Highest Reliability and Noise Immunity in industry.
Low cost high end PLC with base of 112 rugged I/O.
2 EZRackPLCs for the cost of 1 Automationdirect Do-More or BRX PLC.
Incredibly condensed, 17 different combo plug-in I/O modules.
IIoT/MQTT Ready
Ethernet/IP scanner built-in
3 Amp short circuit proof DC outputs capable of 4 Amp surge
Easiest Drag-n-Drop programming software.
Free Flow Logic cuts down number of rungs by at least 50%.
Advanced functionalities, Math, High Speed counters.
32 bit Floating point Math and Logic.
8 Auto tuned PID loops and unique PID monitor.
Highest processing speed, 40µs response to Interrupt.
Drum Sequencer, and send to marquee instruction.
RS422/485 Modbus Master Port.
Advanced instructions and function blocks: Data convert, move block, bit move, strings and subroutines.
Password protection for OEM/SI investment.
Modular Expandable to 2048 I/O.
USB Type A for data storage, and USB Micro for programming and Ethernet Ports built-in.
Status LED for each I/O in every model and Plug-in Terminal Blocks.
