  • Integrated HMI & Nano PLC has 16 DC In, 8 of 10 Amp 1 Form C Relay Outputs.
  • Integrated HMI & Micro PLC the "Bench Mark", 40 to 48 Digital, Analog and Relay I/O Configuration.
  • The only PLC & HMI with 30+ Exceptionally Innovative and Unique Features and up to 48 I/O in one package.
  • Highest Processing power per cubic inch.
  • Highest Reliability and Noise Immunity in industry.
  • Easiest Integrated HMI and PLC Drag-n-Drop PLC programming software, common to all models, just for $149
  • Advanced functionalities, PID, Math, High Speed counters, PWM
  • Fastest Processing time
  • Status LED for each I/O in every model.
  • Patented HMI on-line edit, No downtime
  • Choice of 6", 8", 10" displays for EZTouchPLC
  • All displays are TFT, rated at 400 NITs, 75K hours at 55 degree C.
  • IP protection for qualified customers.
  • All models have EZ Wifi $49 option to connect to your laptop without cable
  • Full project simulation on your PC
  • "C" Level scripting and logic expressions
  • Data logging, Recipes, EMails, USBs, free chart recorder except on models with hardware drivers.
  • On-Screen Recipe Edit
  • Remote Monitoring & Control smart phones & Ethernet except on models with hardware drivers.
  • Most advanced alarm management
  • Dual Driver capability to communicate to other PLC networks like DH+/RIO, Modbus+, CCLink, Profibus and DeviceNet.
  • Best looking objects and animations.
  • Most Rugged 0.090” thick anti-glare touch screen.
  • Unicode for multiple languages.
  • Full Project simulation on your PC.
  • Unique Visibility tag for best screen space utilization.
  • For specifications and features of 31 Cube I/O modules go to I/O module section

EZTouchPLC Fixed I/O Features & Benefits

EZTouchPLC Original Fixed I/O comes in two models: Nano & Micro. ** Note: These two models are recommended for the orginal EZTouchPLCs with hardware drivers such as DH+/RIO, Modbus+, CCLink, Profibus & DeviceNet.


EZTouchPLC Nano with 16 DC In, 8 of 10 Amp 1 Form C Relay Outputs.

No other PLC has the same horse power and specifications as that of EZTouchPLC Nano. Besides the powerful functionality you will see below, it's 10 Amp NO/NC 1 Form C relay outputs are simply unmatched. We have looked and looked at hundereds of integrated HMI and PLCs in the market and there simply is no other TouchPLC that has on board 10 Amp relay outputs. it also has high speed counter capabilities and RS485 expansion port.

EZTouchPLC Micro with 24 DC In, 8 DC Out, 8 of 10 Amp 1 Form C Relay Outputs, 12-bit 4 Analog In & 4 Analog Out, High Speed Counter Input and RS 485 expansion port, along with the EZTouch HMI with hardware drivers makes EZTouchPLC a "Bench Mark" for all integrated HMIs with mid-size PLCs against which all others are measured.

No other PLC has the same horse power and specifications as that of EZTouchPLC Micro. Besides the powerful functionality you will see below, it's 10 Amp NO/NC 1 Form C relay outputs are simply unmatched. We have looked and looked at hundereds of PLCs in the market and there simply is no other PLC that has on board 10 Amp relay outputs.

It's 48 I/O combination of Digital I/Os, High Speed Counter Inputs, Digital Outputs and 8 12-bit Analog I/Os makes EZTouchPLC Micro a "Bench Mark" standard against which all other TouchPLCs are measured.

Integrated HMI & PLC Saves Panel Space

Whereas sometimes it is mandatory to have Touchpanel and a PLC in two separate packages particularly when the I/O is more than 60, having an integrated HMI & PLC in one unit saves up to 1/3rd of panel space and cost.

The only 24 & 48 Fixed I/O PLC & HMI with 32 Exceptionally Innovative and Unique Features.

EZTouchPLC packs unprecedented power in a TouchPLC. Consider the following: 6" 400 NITs LED backlit display with 75K Hrs @55 degree C, DH+/RIO protocol, EtherNet/IP, 1 Serial, Online edit, Onscreen Reciepe edit, C level scripting and logical expression for HMI, Highly advanced PLC with function blocks, 8 Auto tuned PID loops, and the list goes on and on and on....

EZTouchPLC Nano & Micro have been designed to meet the HALT/HASS standards that are used for electronic products used in the space program for shuttle launch, which means high shock and vibration along with thermal shock. In addition the EZTouchPLC Nano & Micro have a very high immunity to noise.

Patented HMI on-line edit, No downtime

All HMIs except for EZTouch, require the machine or process to be shut down to make a change in the HMI program. While a new program is being uploaded to the HMI, it is non-functional and hence the machine can’t be allowed to operate during this time. Every time the HMI program is edited, there is machine down time of typically an hour. All EZTouch series HMIs have a patented on-line edit exceptionally innovative feature that allows the HMI program to be edited without the machine missing a beat.

Easiest Integrated HMI and PLC Drag-n-Drop PLC programming software, common to all models, just for $149

There is a reason why our company is called EZAutomation and our HMI is called EZTouch. We make it so easy to learn our programming language that no user, hundreds of thousands so far, thank you, ever had to attend any class to learn the programming. Most of our competitor’s products, like from Rockwell, Siemens, Mitsubishi, Unitronics, Schneider, Maple and others require a 3-5 day class to learn how to program their products. Our programming language is so intuitive and so simple that the design time for any screen and the entire project is reduced to hours instead of days. PLC software is equally intuitive, simple drag and drop as if you are drawing a ladder diagram. It has great function blocks, project simulation and troubleshooting features. The programing software is fully integrated into one for EZTouchPLC Nano & Micro. Additionally note that the Integrated Programming Software is universal and scalable for all models from top to the bottom.

Highest Reliability and Noise Immunity in industry.

EZTouchPLC Nano & Micro have been designed to meet the HALT/HASS standards that are used for electronic products used in the space program for shuttle launch, which means high shock and vibration along with thermal shock. In addition the EZTouchPLC Nano & Micro have a very high immunity to noise.

Advanced functionalities, PID, Math, High Speed counters.

The EZTouchPLC Nano & Micro is a high end PLC with 55 instructions, 8192 registers, Flash memory, 32 Bit floating point math, 8 PID loops, High speed counters.

Status LED for each I/O in every model.

We have served the Automation industry since 1968. In fact, one of the AVG divisions, Uticor is the inventor of PLCs themselves. We have been around the block and totally understand the value of maintenance and down time in a manufacturing plant. We always make troubleshooting as convenient and EZ as possible. That is why, all our IO points have an LED right next to the output terminal and the terminal block is always Ezily removable and plug-in.

Choice of 6", 8", 10” displays for up to 48 Fixed I/Os


All models have EZ mini Wifi $49 option to connect to your laptop without cable

This tiny little module that plugs into one of the serial ports in the EZTouchPLC Nano & Micro  (we recommend installing on every unit) allows a programmer to connect his/her laptop to it without a cable. So many times, it is not so easy to reach the Operator console to connect the programming cable to the HMI/PLC. Combination of our patented On-Line Edit feature and EZminiWifi becomes an exceptionally innovative solution to making changes on HMI screens and PLC ladder logic without having to open up the control cabinet and connecting the Programming cable.

Full project simulation on your PC for EZTouchPLC Nano & Micro Series.

EZTouchPLC Nano & Micro programming software allows you to preview and test your entire HMI project by our Project simulation feature in the software. You can simulate the entire project on your PC itself before loading it up in your EZTouchPLC Nano & Micro. It’s a great time saver for programmers.

"C" Level scripting and logic expressions

Each tag in EZTouch HMI can be defined with a logic expression and C level scripting to get mathematical burden off the PLC and reduce the memory requirement in the PLC. Such a high end HMI can reduce the task of PLC to do simple ladder logic, even though the PLC inside the EZTouchPLC Nano & Micro's has sufficient horsepower of their own.

Data logging, Recipes, EMails, USBs, free chart recorder

EZTouch HMIs with data-logging features log large amount of data on the local Micro SD option card. This data can subsequently be up loaded to a local server or cloud. This feature turns the EZTouchPLC Nano & Micro into a chart recorder saving hundreds of dollars on an external chart recorder. EZTouchPLC Nano & Micro also offers advanced Recipe Management to program different variables of a Recipe simultaneously. In addition, EZTouchPLC Nano & Micro HMIs have another advanced feature of sending emails or texts to designated personnel in the event of an alarm. ** Note: This feature is not availble on EZTouchPLC Nano & Micro's with hardware drivers.

On-Screen Recipe Edit

All EZTouch HMIs have an exceptionally innovative feature of on-screen recipe edit where you can edit the recipe on the HMI itself without needing to connect to a laptop with programming software.

Remote Monitoring & Control smart phones & Ethernet

All EZTouch HMIs have a remote monitoring and control feature where you can monitor and control the functionality of an HMI remotely via a Smart phone with iOS or Android OS. RMC can also be done over Ethernet connection in all EZTouch HMIs. ** Note: This feature is not availble on EZTouchPLC Nano & Micro's with hardware drivers.

Most advanced alarm management and Logging

Alarm management in EZTouch HMIs is at a very advanced level. It has an Alarm database, alarm history, alarm preview, alarm count, alarm message to a marquee, alarm preview, alarm simulation and alarm reset protection.

Dual Driver capability to communicate to other PLC networks.

EZTouchPLC Nano & Micro's have the capacity to talk to other PLCs at the same time. Therefore, besides, the EZPLC Nano & Micro on board, it can also talk to another network like DH+/RIO.

Best looking objects and animations.

EZTouch HMIs have the best looking objects simulating real life panel actuators and indicators. And the animation of process is great.

Most Rugged 0.090” thick anti-glare touch screen.

All EZTouchPLC Nano & Micro's have an extremely rugged customized touch screen that is 0.090” thick as compared to paper thin touch screens used in our competitor’s products, increasing the durability of the EZTouch touch screen.

Unicode for multiple languages.

All EZTouchPLC Nano & Micro HMIs have a Unicode feature for multiple languages, that is each Object can be displayed in different languages. This allows every operator of the HMI to be able to communicate to it in the language of his or her choice.

Unique Visibility tag for best screen space utilization.

EZTouchPLC Nano & Micro HMis have an extremely innovative Visibility tag on all objects. Object appears on the screen only if the visibility tag is true. Along with EZTouchPLC Micro’s feature of overlapping objects, visibility tag is a great space saver on the screen.

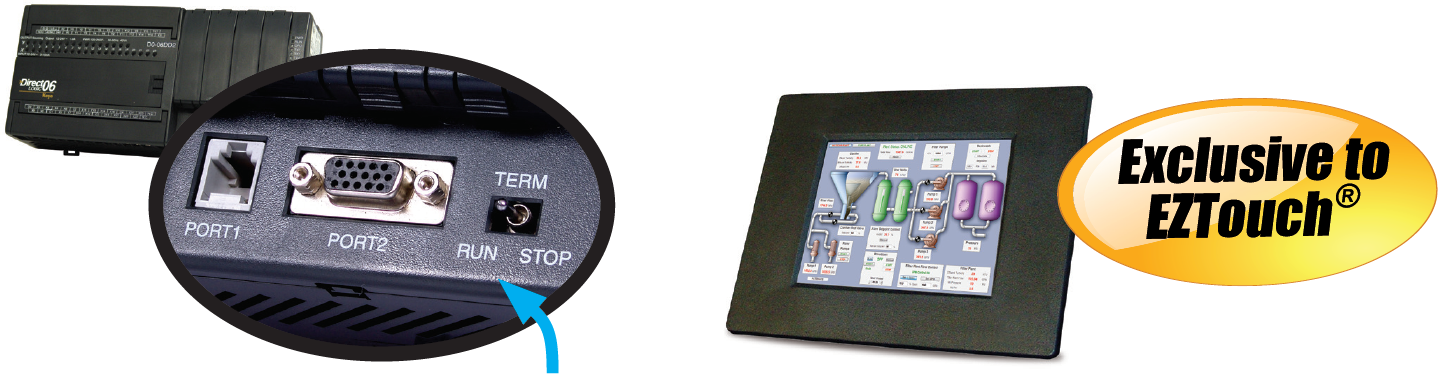

Patented HMI on-line edit, No Machine Shutdown, No downtime!

You wouldn’t buy a PLC today
if it didn’t have On-Line Edit...

...So why should you have to buy a Touch
Panel without On-Line Programming?

Only the EZTouch® has On-Line Programming

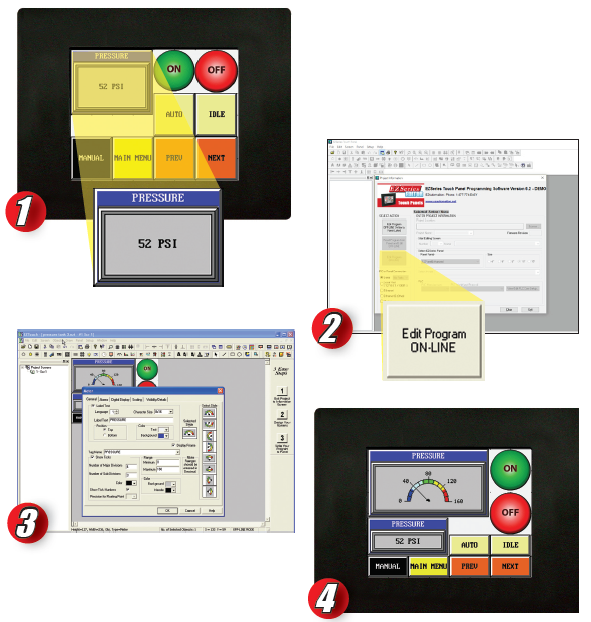

1.

After a machine upgrade including a new
PLC and Operator Interface, our System
Integrator asked the Machine Operator what
he would like to see better yet. The Operator
said the new “computer” was great with all
the colors but he missed the old pressure
gauge.

2.

Our System Integrator immediately pulled
out his notebook computer, hooked it up to
the Touch panel, launched his programming
software and put it in On-Line mode.

3.

And then, right in front of the operator’s eyes,
moved the other objects on the screen and
put an Analog Meter exactly to the operator’s
color taste, without ever having to shut down
the machine.

4.

All this took less than 2 minutes.
Operator: “Now that is nice!”
Let’s get these on all the
machines.”

Tiny EZminiWiFi allows laptop to communicate to HMI 50 ft. away

Buy Now

For those in plant operations, this tiny wifi could be a life saver. No need to jump across machines/tools, open control cabinet and find the right cable to connect your laptop and HMI. Connect over EZminiWifi from anywhere convenient 50 ft. away

Tiny EZminiWifi plugs in to RS232 port of any of EZTouch based devices of any kind.

Highly recommended to be installed on every EZTouch panels made since 2001


Buy Now

PLC Communications and Drivers

A vast majority of North American Plants still have AB's Data Highway Plus (DH+) or Remote I/O (RIO) networks in place.

On the HMI side of the EZTouchPLC you can communicate to networks with hardware drivers listed below:

Hardware Drivers Supported:
• DH+
• Remote I/O
• Modbus Plus
• Profibus
• DeviceNet

No other Touchpanel HMI manufacturer other than EZAutomation, Uticor and Allen-Bradley can communicate over Data Highway Plus (DH+) or Remote I/O.

On the PLC side the EZTouchPLC can communicate to drivers listed below:

  • Modbus RTU
  • EZ Protocols

EZTouchPLC Nano & Micro Supported Drivers:

Allen Bradley:
A-B Data Highway Plus (DH+)
A-B Remote I/O

Automation Direct:
Modbus (Productivity 3000 PACs, Direct Logic PLCs, Click PLCs)
Entivity Think&Do (Modbus RTU and Modbus TCP/IP)

AVG / EZAutomation:
EZRack PLC (Serial)
EZPLC

Mitsubishi:
Mitsubishi CC Link

Modicon / Schneider:
DeviceNet
Modbus RTU
Modbus Plus (Industrial Network)

Siemens:
Profibus

Yaskawa:
Memo-bus RTU

Options to Consider

Remote capability over PC, Tablet or Smart Phone (Apple iOS and Google Android)

EZRMC Remote HMI

**Note: Works with Models without hardware drivers.


If you need assistance, be sure to visit the RMC Support page.

iPad Tablet
EZ RMC™ Remote HMI is an application designed for your mobile devices on both iOS and Android platforms, for the monitoring and control of your EZTouch HMIs from EZAutomation.net. Enjoy direct access to your EZTouch HMI from anywhere at the tips of your fingers, on your phone or tablet. The EZ RMC™ Remote HMI is available on both the iTunes App Store as well as the Google Play store.

This App currently works with EZAutomation's EZTouch EZ3 Series, Windows based CE Series HMIs (6" to 10"), Windows 7 based EZWindows HMI (10" or 15"), EZTouch Plus Dedicated OS HMIs (15"), or using our runtime EZ-SOFTHMI software running on a compatible PC. Support for other platforms is under development, and updates will be announced when available.

Features:

  • Realtime View and Control of your EZTouch HMI panel
  • "Pinch" style zoom for more in-depth view of your HMI project
  • Save screenshots directly from the App
  • Multiple user accounts can be configured for each panel project, with multiple levels of security, including either only Viewing ability, or both Viewing and Control
  • Record your most used panels in your Favorites for quick access, and designate one HMI for direct access by default when the App is opened


Compatibility:

  • iOS App works with all iOS devices (iPad, iPhone, iPod Touch) running iOS version 6 or later
  • Android App works with devices running OS version 4.0.3 - Ice Cream Sandwich or later
