Innovative Unique Features
- Restricted Windows Embedded, Fully Loaded, Fully American, 2 Serial, 4 USB, Ethernet
- 400 NITs, 75K Hrs @ 55°C
- Patented HMI on-line edit, No downtime

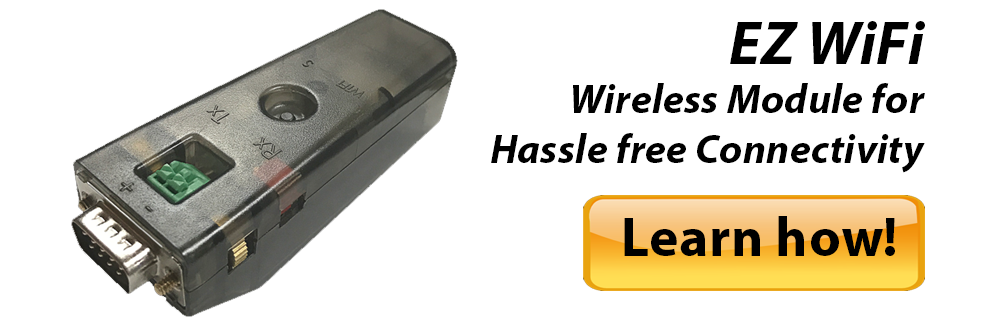

- Tiny EZminiWifi installed on the HMI allows Laptop to program HMI from 400 ft. away. $49
- Only HMI that can still talk to AB’s DH+
- EZTouch EZW HMIs have real time access to process data stored inside the HMI or the USB drive and the micro SD using AVG File Manager utility.
- EZTouch EZW HMIs in a plant or multiple plants have the capacity to be monitored using EZPlantview software.
- Best looking objects and animation with 65K colors.
- Most Rugged 0.090” thick anti-glare touch screen.
- Fastest touch response time of any HMI.
- Unicode for multiple languages.
- Easiest Programming Software, design time in hrs not days.
- Full Project simulation on your PC.
- “C level” scripting and logic expressions.
- Data-logging, Recipes, Emails, USBs. Free Chart recorder.
- Most advanced Alarm management and logging.
- On-Screen Recipe Edit.
- Every model Fully Loaded, No “R” Reduced Features models.
- Remote Monitoring and Control, Smart phones & Ethernet.
- Communicate to all PLCs, including DH+ & Ethernet IP.
- Dual PLC Drivers with automatic tag conversion.
- Mfr. cost reduction & IP protection for qualified customers.
- Unique Visibility tag for best screen space utilization.
- Pass-through programming for all PLCs.
|
|
EZ Windows HMI Features & Benefits

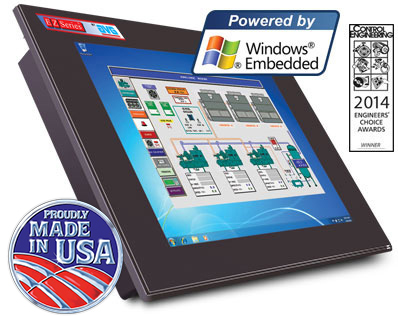

Restricted Windows Embedded
Fully Loaded, Fully American, EZ Windows HMI comes standard with 4 USB ports, a MicroSD card
reader, 2 Serial Ports, and a 1GB Ethernet Port.
The USB ports and MicroSD card reader offer virtually
limitless memory as well as universal connectivity to the
peripherals of your choice such as printers, bar-code
scanners, weigh scales, etc. In addition EZW HMI's have restricted Windows features of viewing video, excel, power point, and pdf.

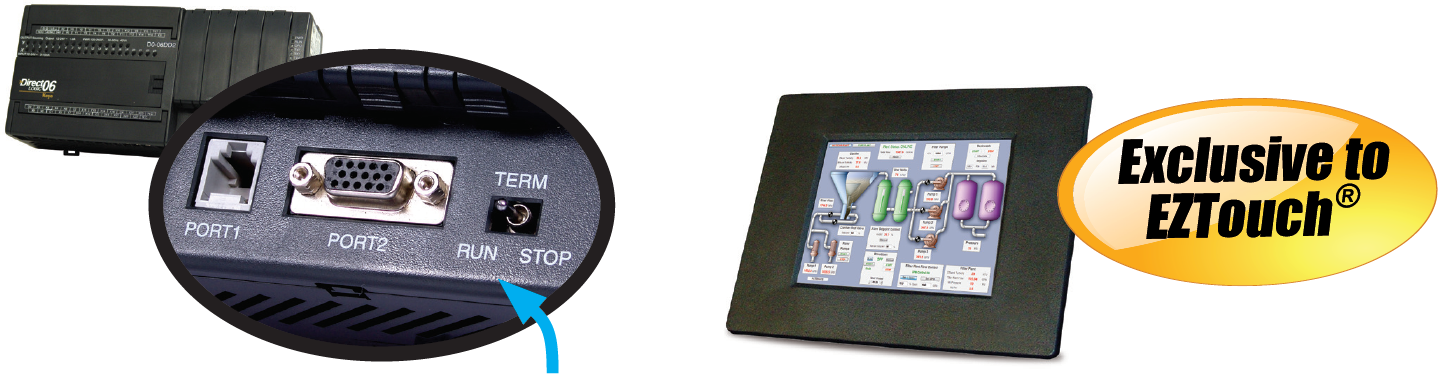

Patented HMI on-line edit, No downtime
All HMIs except for EZtouch, require the machine or process to be shut down to make a change in the HMI program. While a new program is being uploaded to the HMI, it is non-functional and hence the machine can’t be allowed to operate during this time. Every time the HMI program is edited, there is machine down time of typically an hour. All EZTouch series HMIs have a patented on-line edit exceptionally innovative feature that allows the HMI program to be edited without the machine missing a beat.
In a recent study, more than 2/3rds of control engineers stated that after the HMI is installed in a machine or process, the plant user, system integrator or OEM requests some change in the screen design at least 10 times in the first 90 days following installation.
Even if you were able to make the change in
half-an-hour, machine/process will be down
by 0.5 hr. each time change is made. Taking
downtime at even a low cost of $1000/hr.,
the patented unique HMI online feature in all
EZTouch HMIs, saves you at least $5000 in just
first 3 months of operation.
400 NITs, 75K Hrs @ 55°C
When evaluating HMIs for you Machine or Application you should look at the overall cost of ownership. EZTouch displays all have LED backlight which is lot more durable in fact it is rated at 75K Hrs while operating at 55°C as compared to most of our competition's 50k Hrs at 25°C. In addition, EZTouch displays have a higher brightness of 400 NITs as compared to 230 to 250 NITs from others. In short, EZTouch HMIs last twice as long.
Tiny EZminiWifi installed on the HMI allows Laptop to program HMI from 50 ft. away.
This tiny little module that plugs into one of the serial ports in the HMI (we recommend installing on every HMI) allows a programmer to connect his/her laptop to the HMI without a cable. So many times, it is not so easy to reach the Operator console to connect the programming cable to the HMI. Combination of our patented On-Line Edit feature and EZminiWifi becomes an exceptionally innovative solution to making changes on HMI screens without having to open up the control cabinet and connect the Programming cable.
Only HMI that can still talk to AB’s DH+
Allen Bradley/Rockwell is no longer supporting its DH+ protocol originated in 1980’s. Whereas there are over one million nodes in manufacturing plants all over the world on PLC2, PLC5, SLC 500, Control Logix, Compact Logix and Micro Logix PLCs, there is no other HMI on the market that still supports the DH+ protocol. It is because of EZTouch HMIs that these plants do not have to change their networks to Ethernet I/P, saving them hundreds of thousands of dollars.
Dual PLC Drivers with automatic tag conversion.
All EZTouch HMIs now have the capability to simultaneously talk to two PLC networks. For example, Ethernet I/P on one side and Modbus RTU on the other side. Tags are automatically converted. This allows the two networks to communicate to each other through EZTouch.
Best looking objects and animation with 65K colors.
EZTouch HMIs have the best looking objects simulating real life panel actuators and indicators. And the animation of process is great. All EZTouch HMIs except the EZTouch Original now have 65K colors.
EZ Sunlight readable models for 10” models.
EZTouch Windows HMIs have a 10” 1000 NIT Sunlight readable model that allows the screen to be viewed and operated in bright sun light such as the deck of an oil rig or a naval vessel. All other features remain the same as in respective models.
Most Rugged 0.090” thick anti-glare touch screen.
All EZTouch HMIs except the 12” model have an extremely rugged customized touch screen that is 0.090” thick as compared to paper thin touch screens used in our competitor’s products, increasing the durability of the EZTouch touch screen.
Fastest touch response time of any HMI.
All EZTouch HMIs have a super fast response time of less than ÂĽ of a second, that is the response to touching any object on the screen is instantaneous. Its four to ten times faster than any other HMI.
Mfr. cost reduction & IP protection for qualified customers.
EZAutomation has an extremely innovative service for its qualified customers. Many OEMs and System Integrators want to protect their intellectual property incorporated into their HMI. Since you are buying directly from our factory, for a certain minimum volume per month and a service fee, we can load your program and do a brief quality test of the HMI prior to shipping. This service cuts down your manufacturing cost of programming each unit prior to installation on the machine. This includes giving your product a unique part number of your choice to protect your investment in the purchase of your HMI by any third party. Call the Factory to find out the cost of this service per unit and other details.
Unicode for multiple languages.
All EZTouch HMIs have a Unicode feature for multiple languages, that is each Object can be displayed in different languages. This allows every operator of the HMI to be able to communicate to it in the language of his or her choice.
Easiest Programming Software, design time in hrs not days.
There is a reason why our company is called EZAutomation and our HMI is called EZTouch. We make it so easy to learn our programming language that no user, hundreds of thousands so far, thank you, ever had to attend any class to learn the programming. Most of our competitor’s products, like from Rockwell, Siemens, Mitsubishi, Unitronics, Schneider, Maple and others require a 3-5 day class to learn how to program their products. Our programming language is so intuitive and so simple that the design time for any screen and the entire project is reduced to hours instead of days.
Full Project simulation on your PC.
EZTouch programming software allows you to preview and test your entire project by our Project simulation feature on your PC itself before loading it up in your EZTouch. It’s a great time saver for programmers.
“C level” scripting and logic expressions.
This unique feature in all EZTouch products off loads a very substantial burden on the PLC and reduces PLC scan time, number of rungs, and size of memory, as these calculations can be done essentially off-line in HMI.
Data-logging, Recipes, Emails, USBs. Free Chart recorder.
EZTouch EZ3 can store HMI/PLC data on EZ3s USB or micro SD card and remotely retrive this data real-time over Internet using AVG File Manager. The USB drive or the micro SD serves as a free chart recoder saving the cost of an external chart recorder costing hundereds of thousands of dollars.
Most advanced Alarm management and logging.
*New Feature: EZTouch now provides an Alarm database, Alarm preview, Alarm history, Alarm count, Alarm protection and a special feature to send Alarm directly to EZMarquee. It also allows for the EZtouch HMI to email or text alarm messages.
Plantview Capability
All EZTouch EZW HMIs in a plant or multiple plants, have the capability of getting monitored by using EZPlantview software allowing all critical parameters to be collected and displayed in the individual EZW HMI which can be viewed on one or multiple large screens in a control room.
On-Screen Recipe Edit.
All EZTouch HMIs feature an on-screen recipe edit where you can edit the recipe on the HMI itself without needing to connect to a laptop with programming software.
Remote Monitoring and Control, Smart phones & Ethernet.
All EZTouch HMIs have a remote monitoring and control feature where you can monitor and control the functionality of an HMI remotely via a Smart phone with iOS or Android OS. RMC can also be done over Ethernet connection in all EZTouch HMIs.
Communicate to all PLCs, including DH+ & Ethernet IP.
EZTouch HMIs have the highest connectivity to a PLC with serial protocols, Ethernet protocols such as Ethernet IP, Modbus TCP/IP, GE SRTP, Siemens ISO, K-sequence and of course the EZ Protocol, as well as DH+. Serial protocols cover 98+% of all PLCs in the market.
Lowest cost, powerful Soft HMI for any Windows based PC.
EZAutomation also offers a phenomenal soft HMI that features all the great objects and connectivity of EZTouch HMIs. It is extremely innovative in that it does not have any limitation on number of tags or number of screens. Data logging is all local in the PC it is installed in. If the PC has a serial port, it has connectivity to all PLCs. If the PC has only Ethernet, all Ethernet protocols are available for communication.
Unique Visibility tag for best screen space utilization.
EZTouch HMis have an extremely innovative Visibility tag on all objects. Object appears on the screen only if the visibility tag is true. Along with EZTouch’s feature of overlapping objects, visibility tag is a great space saver on the screen.
Pass-through programming for all PLCs.
All EZTouch HMIs allow pass-through programming of any device connected to the HMI, whether it is a PLC, PAC or a Drive. PLC Programming software of any make, for example Rockwell can pass through the same programming port as the EZTouch programming software making it very convenient to program the whole control system through just one port/connection.
|
|
|
EZ Windows HMI comes standard with 16GB
of SSD Memory, 4 USB ports, a MicroSD card
reader, 2 Serial Ports, and a 1GB Ethernet Port.
With an all-in-one package, the EZ Windows
HMI™ can be used as an Industrial PC, an HMI,
or a complete SCADA system. EZAutomation’s
EZ Windows HMI™ is designed for industrial
environments with a Nema 4/4X rated housing. |
EZ Windows HMI let you use
the real power of Windows Embedded |
4 USB Ports
• Any Windows Compatible
• Peripherals
• Programmable Over USB |
|
|
|
1GB Ethernet
• AB Ethernet IP
• DF1 Ethernet
• Siemens ISO Ethernet
• GE SRTP - Modbus TCP/IP
• Remote Access & Control |
|

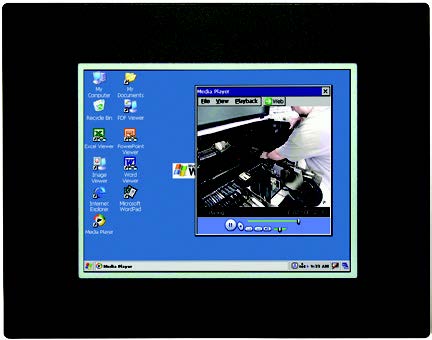

View video file in MPEG
format
|

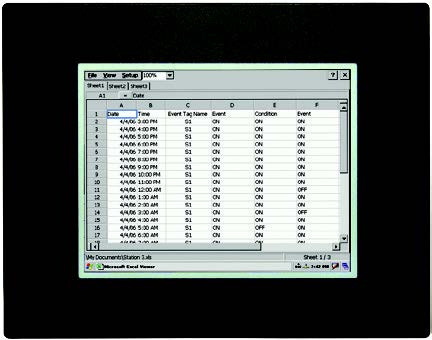

View Excel -
View and analyze
current data |
MicroSD Card Reader
2 Serial Ports
Fanless
Nema 4/4X |
|
|
|
The USB ports and MicroSD card reader offer virtually
limitless memory as well as universal connectivity to the
peripherals of your choice such as printers, bar-code
scanners, weigh scales, cameras, etc. |

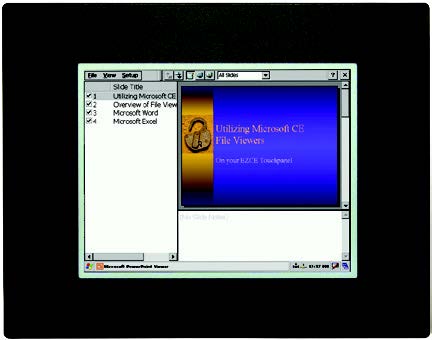

View PowerPoint
Visually learn and train |

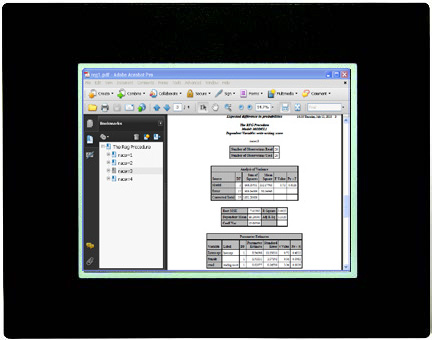

View PDF
View machine manuals
in PDF format |
|
Stunning Display
16.2 MM Colors
LED Backlight
500 Nits
1024x768 Resolution |
|
|
|
|
Options to Consider
|
Patented HMI on-line edit, No Machine Shutdown, No downtime!
|
You wouldn’t buy a PLC today
if it didn’t have On-Line Edit... |
...So why should you have to buy a Touch
Panel without On-Line Programming? |
Only the EZTouch® has On-Line Programming
|
1. |

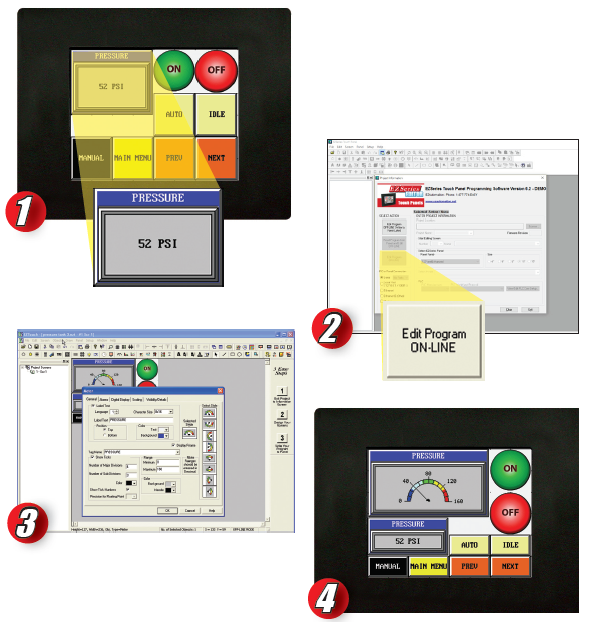

After a machine upgrade including a new
PLC and Operator Interface, our System
Integrator asked the Machine Operator what
he would like to see better yet. The Operator
said the new “computer” was great with all
the colors but he missed the old pressure
gauge. |
|
2. |
Our System Integrator immediately pulled
out his notebook computer, hooked it up to
the Touch panel, launched his programming
software and put it in On-Line mode. |
3. |
And then, right in front of the operator’s eyes,
moved the other objects on the screen and
put an Analog Meter exactly to the operator’s
color taste, without ever having to shut down
the machine. |
4. |
All this took less than 2 minutes.
Operator: “Now that is nice!”
Let’s get these on all the
machines.” |
|
|
PLC Communications and Drivers
The EZSeries HMI Touchpanels communicate to more PLCs and Networks than any other HMI. Allen-Bradley panels talk to mostly AB PLCs, Siemens panels talk to their PLCs, Mitsubishi HMIs communicate mostly to their PLCs and so on.
A vast majority of North American Plants still have AB's Data Highway Plus (DH+) networks in place.
Industrial Ethernet is fast becoming the hardware communication platform for an increasing number of plants all over the world. But Ethernet without the proper supporting protocol (software driver) is like having a great vehicle without tires. Not so with EZAutomation, our EZTouch EZ3 Series HMIs can communicate to all major ethernet networks including but not limited to:
- Allen-Bradley Ethernet I/P to Controllogix and Compactlogix
- DF1 protocol over Ethernet for Micrologix & SLC 500 series PLC's
- Siemens Ethernet ISO over TCP/IP
- Modbus TCP/IP
- SRTP for GE networks
EZTouch EZW HMI Supported Drivers:
|
Allen Bradley:
A-B DF1 Half and Full Duplex (PLC-5, SLC500, Micrologix 1000, 1200 and 1500)
DH485/AIC/AIC+ for Micrologix 1000, 1200,1400, 1500,SLC 500, 5/01, 5/02, 5/03)
A-B Micrologix 800 CIP Protocol
A-B EtherNet/IP (MicroLogix 800, Control & Compact Logix)
A-B DF1 over Ethernet (for Micrologix & SLC 500 PLCs)
A-B Data Highway Plus (DH+)
Automation Direct:
ADC K-Sequence (Direct Logic PLCs)
DirectNET (Direct Logic PLCs)
Do-More PLC (Serial & Ethernet)
Modbus (Productivity 3000 PACs, Direct Logic PLCs, Click PLCs)
ECOM Ethernet (Direct Logic PLCs)
Entivity Think&Do (Modbus RTU and Modbus TCP/IP)
Productivity Driver (Serial & Ethernet)
ABB: (COMLI Driver)
All Motion: (EZ Stepper)
Animatics: (Smart Motor)
Applied Motion: (SCL series)
Aromat: (Mewtocol)
AVG / EZAutomation:
EZRack PLC (Serial)
EZRack PLC TCP/IP
EZPLC
EZ Ethernet
Baldor: (Host Comms)
Bristol Babcock: BSAP Native (serial)
Control Techniques: Unidrive 2-wire, 4-wire (binary)
|
Control Technology Corp (CTC): CTC 2600, 2700 and 5100 (CTC Binary)
GE:
GE Fanuc SNPX (90/30, 90/70)
GE SRTP over Ethernet
IDEC: Computer Link
Keyence: (CV 5000)
Mitsubishi:
FX Series CPU (Computer Link)
FX-1N(C), 2N(C), 3(U) CPU
Q Series PLCs
A Series PLCs
Melsec FX
Modicon / Schneider:
Modbus RTU
Modbus TCP/IP
Uni-Telway
Omron: Host Link Adaptor
Siemens:
S7 (Serial:PPI)
Siemens Ethernet ISO over TCP/IP
S7-200, S7-300, S7-400, S7-1200 & S7-1500 series
Texas Instruments (TI):
TI 5x5 series, TI 505, TI 545-1102, TI 545-1104
Square D:
Square D Symax – 300 Series CPU, 400 Series CPU
Yaskawa:
Memobus Native Addressing
Memo-bus RTU
|
|
|
Remote capability over PC, Tablet or Smart Phone (Apple iOS and Google Android) for part number EZ-TXC-FS-RMC
If you need assistance, be sure to visit the RMC Support page.
EZ RMC™ Remote HMI is an application designed for your mobile devices on both iOS and Android platforms, for the monitoring and control of your EZTouch HMIs from EZAutomation.net. Enjoy direct access to your EZTouch HMI from anywhere at the tips of your fingers, on your phone or tablet. The EZ RMC™ Remote HMI is available on both the iTunes App Store as well as the Google Play store.
This App currently works with EZAutomation's EZTouch EZ3 Series, Windows based CE Series HMIs (6" to 10"), Windows Embedded based EZWindows HMI (10" or 15"), EZTouch Plus Dedicated OS HMIs (15"), or using our runtime EZ-SOFTHMI software running on a compatible PC. Support for other platforms is under development, and updates will be announced when available.
Features:
- Realtime View and Control of your EZTouch HMI panel
- "Pinch" style zoom for more in-depth view of your HMI project
- Save screenshots directly from the App
- Multiple user accounts can be configured for each panel project, with multiple levels of security, including either only Viewing ability, or both Viewing and Control
- Record your most used panels in your Favorites for quick access, and designate one HMI for direct access by default when the App is opened
Compatibility:
- iOS App works with all iOS devices (iPad, iPhone, iPod Touch) running iOS version 6 or later
- Android App works with devices running OS version 4.0.3 - Ice Cream Sandwich or later
|
|
|
