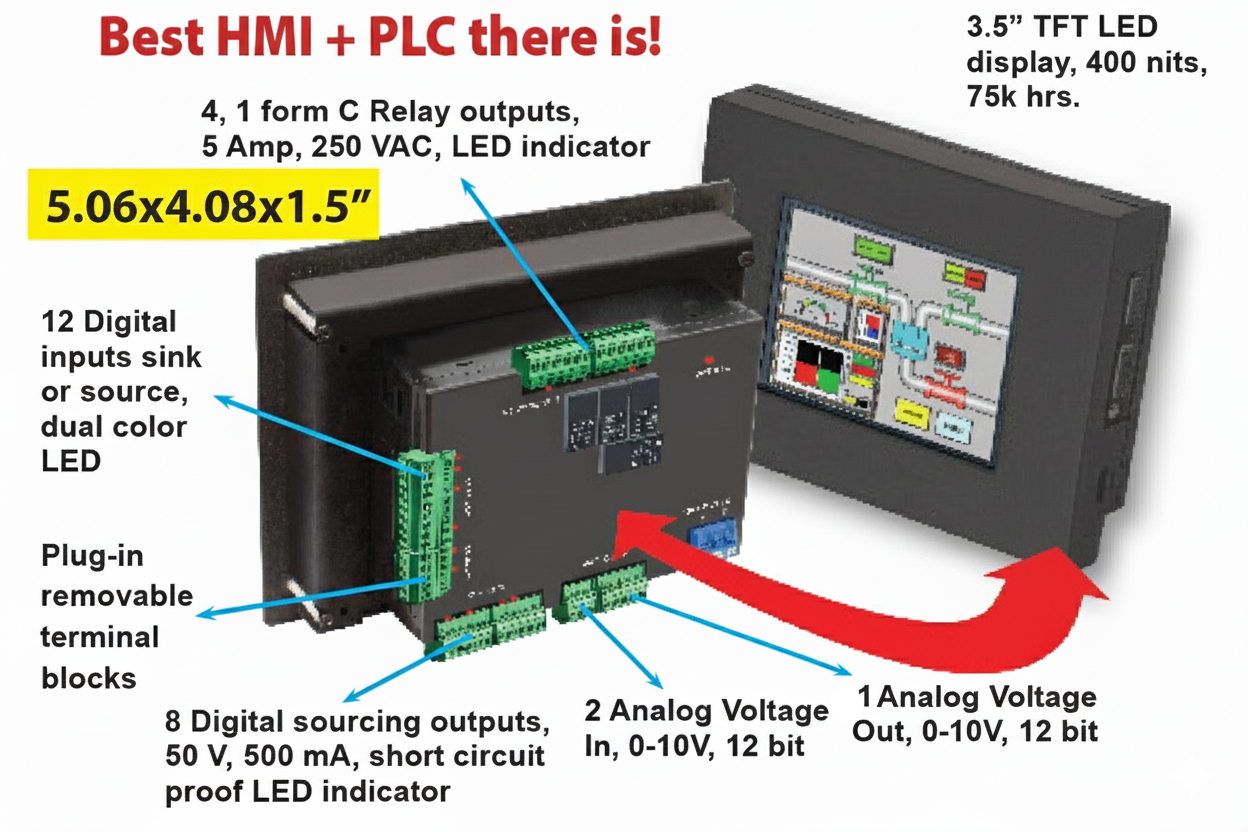

• MiniTouchPLC. Integrated HMI & PLC ALL IN ONE.
Most Compact, Most Space Efficient HMI & PLC. Ideal for Table Top or Small Machines.
- 27 I/O at 5” by 4” and just 1.5” deep
- 12 DC in, 8 Short Circuit proof DC out
- (4) 5-Amp Relays
- (2) 250khz encoder inputs
- 2 analog inputs, and 1 analog output (voltage)
- Remote Monitoring and Control on Smart Phones
- Mini-wifi Option to program/monitor from 50 ft. away
- Saves panel space as no extra space is needed for a separate plc that’ll be mounted in the back of the control panel. Saving 8x5 square inches of panel space easily.
• PLC is FREE. In a direct apples to apples comparison, the price of the miniTouchPLC is comparable to most standalone HMI’s even without factoring the PLC cost. So, comparing products from ADC with their hmi and plc, we are looking at least a 2 for 1 price ratio. Tariffs will further drive their prices up.
• Most Maintenance Friendly LEDs right next to Terminals, Short circuit proof outputs, Plug-in Removable terminal blocks
• Free program conversion from EZAutomation
• Drag N Drop Eziest PLC software
• Built-in Snubbers on Relay contacts to save extra cost unlike with ADC PLCs.
• It's short circuit proof DC outputs with 4 Amp inrush surge capability elimates need for external solid state relays and installation of fast acting fuses for each output.
• Patented HMI On-Line Edit to change or edit screen objects live on the fly without turning the machine off. Great Feature to avoid having to replace the entire HMI if only a repeat button that’s in constant use goes out.
• MiniWiFi addition will prevent floor production interruptions, make edits 50ft away. C-More takes 20-60 minutes for edits.
• OEM Utility – For those OEMs or SIs particular about protecting their IP, they could upgrade their HMIs in the field through use of an OEM Utility, which when connected to the HMI upgrades the project without needing programming software. The end user does not see the project file developed by the OEM or SI
• Dual PLC Drivers with automatic tag conversion. All EZ3 and EZ7 HMIs have the capability to simultaneously talk to two PLC networks. For example, Ethernet I/P on one side and Modbus RTU on the other side communicating to a motor drive. Tags are automatically converted. This allows the two networks to communicate to each other through EZTouch.
• Unique Visibility tag prevents objets from cluttering. All EZTouch HMis have an extremely innovative Visibility tag on all objects. Object appears on the screen only if the visibility tag is true. Along with EZTouch’s feature of overlapping objects, visibility tag is a great space saver on the screen.
• Real Time Remote Data Monitoring and Data Acquistion saving OEM field service trips.
• On-Screen Recipe Edit - All EZTouch HMIs feature an on-screen recipe edit where you can edit the recipe on the HMI itself without needing to connect to a laptop with programming software.
Call 563-340-1464 or email
to schedule a live zoom demonstration with one of our Application Engineers.
