  • An Engineering Marvel, 3.5” or 6” TFT, 12 DI, 8 DO, 4 of 5 Amp 1 form C RLY, 2 AI, 1 AO + 250 KHz Quadrature Encoder Input
  • Incredible Prices: 3.5" with 27 I/O @ $299, 6" with 27 I/O @ $449 "PLC is FREE"
  • All displays are TFT, rated at 400 NITs, 75K hours at 55 degree C.
  • Patented HMI on-line edit, No downtime
  • Status LED for each I/O
  • Plug-in terminal blocks
  • Highest Processing Power per cubic inch
  • 250 KHz Encoder
  • Integrated Drag-n-Drop Ladder Logic Software
  • 55 High-end Instruction set
  • Great function blocks
  • Advanced HMI functions
  • On-Screen Recipe Edit
  • Great graphics, animations Datalogging
  • Alarm Management
  • Remote Monitoring & Control
  • Best looking objects and animations.
  • Remote Monitoring and Control, Smart phones & Ethernet.
  • Communicate to all PLCs with industrial Ethernet protocol.
  • Dual PLC Drivers with automatic tag conversion.
  • Mfr. cost reduction & IP protection for qualified customers.
  • Most Rugged 0.090” thick anti-glare touch screen.
  • Fastest touch response time of any HMI.
  • Unique Visibility tag for best screen space utilization.
  • Unicode for multiple languages.
  • Easiest Programming Software, design time in hrs not days.
  • Full Project simulation on your PC. Custom start-up screen.
  • “C level” scripting and logic expressions.
  • Data-logging, Recipes, Emails, USBs. Free Chart recorder.
  • Most advanced Alarm management and logging.

EZTouchminiPLC HMI PLC Features & Benefits

Incredible 3.5” and 6” EZTouch.miniPLC models, PLC is Free!

These EZTouch.miniPLCs have incredible features at the price points they are offered. $299 for 3.5” and $449 for 6” display. The PLC in these miniPLCs has 12 DC In, 8 Short Circuit proof DC out, 4 5 Amp relays, 2 12 bit Analog In and 1 12 bit Analog out. 2 of 12 DC In can be used for quadrature encoder running up to 250 Khz pulse rate. The terminal blocks are removable and plug-in. EZTouch.miniPLC has a real time clock, has all the functionality of 32 Bit floating point math, Advanced function blocks, PID and PLS outputs. It is a prime example of Innovation by Design, Exceptionally Innovative products, Made in America and brought to you Factory Direct with no other supply channels in between with their own mark-ups. These EZTouc.miniPLCs are heads and shoulders above Samba units from Unitronics with 40% more IO, high end PLC functionality and at lesser prices. There is simply no comparison!

EZTouch.miniPLCs have the option of having an Ethernet port also with all the Ethernet I/P, Modbus TCP/IP, GE SRTP, Siemens ISO over TCP/IP protocols allowing them to communicate to external networks also.

Patented HMI on-line edit, No downtime Watch it in action.

All HMIs except for EZtouch, require the machine or process to be shut down to make a change in the HMI program. While a new program is being uploaded to the HMI, it is non-functional and hence the machine can’t be allowed to operate during this time. Every time the HMI program is edited, there is machine down time of typically an hour. All EZTouch series HMIs have a patented on-line edit exceptionally innovative feature that allows the HMI program to be edited without the machine missing a beat.

Easiest Integrated HMI and PLC Drag-n-Drop PLC programming software, common to all models, just for $149

There is a reason why our company is called EZAutomation and our HMI is called EZTouch. We make it so easy to learn our programming language that no user, hundreds of thousands so far, thank you, ever had to attend any class to learn the programming. Most of our competitor’s products, like from Rockwell, Siemens, Mitsubishi, Unitronics, Schneider, Maple and others require a 3-5 day class to learn how to program their products. Our programming language is so intuitive and so simple that the design time for any screen and the entire project is reduced to hours instead of days. PLC software is equally intuitive, simple drag and drop as if you are drawing a ladder diagram. It has great function blocks, project simulation and troubleshooting features. The programing software is fully integrated into one for EZTouch.miniPLC. Additionally note that the Integrated Programming Software is universal and scalable for all models from top to the bottom.

Highest Reliability and Noise Immunity in industry.

EZTouch.miniPLC has been designed to meet the HALT/HASS standards that are used for electronic products used in the space program for shuttle launch, which means high shock and vibration along with thermal shock. In addition the EZTouch.miniPLC has a very high immunity to noise.

Advanced functionalities, PID, Math, High Speed counters.

The EZTouch.miniPLC is a very high end PLC with 55 instructions, 8192 registers, Flash memory, Real Time Clock, 32 Bit floating point math, 8 PID loops, High speed counters.

Highest Processing power per cubic inch.

EZTouch.miniPLCs are uniquely compact living up to the AVG theme of “Maximum Processing Power per cubic inch”. AVG is a vertically integrated company with in-house capability of high density PCBs, thick film hybrids, flexible boards and semiconductors allowing us to be extremely innovative. In EZTouch.miniPLC we have been able to pack: 1. 3.5" or 6" LED backlit display
2. Ethernet port for EtherNet/IP, Modbus TCP/IP etc.
3. 10 DC Inputs
4. 8 Short circuit proof DC Outputs
5. 2 250K Hz Encoder Inputs
6. 4 5 Amp 1 Form C Relay outputs with snubbers
7. 2 12-bit Analog Inputs
8. 1 12-bit Analog Output
9. Real time clock
10. LED indicators next to each I/O points
11. Plug-in removable terminal blocks
ALL IN 5" x 4" x 2" PACKAGE

Status LED for each I/O in every model.

We have served the Automation industry since 1968. In fact, one of the AVG divisions, Uticor is the inventor of PLCs themselves. We have been around the block and totally understand the value of maintenance and down time in a manufacturing plant. We always make troubleshooting as convenient and EZ as possible. That is why, all our IO points have an LED right next to the output terminal and the terminal block is always Ezily removable and plug-in.

Choice of 3.5" or 6" displays

EZTouch.miniPLC displays are all with LED backlight rated at 400 NITS and 75K hours at 55 degree C ambient.

At least 2 for 1 of Unitronics, Maple HMI+PLC models, & Cmore and Separate Domore PLCs.

If you compare the HMI+PLC offering of EZAutomation and Unitronics, you will find that apples to apples, Unintronics Uni Series, Maple HMC Series, and  Automationdirect Cmore/Domore, shall be at least 3 for one, and if you compare the apples to oranges, that is EZAutomation’s EZTouch.miniPLC to their equivalent models, they will be at least 2 for 1.

All models have EZ Wifi $49 option to connect to your laptop without cable

This tiny little module that plugs into one of the serial ports in the EZTouch.miniPLC  (we recommend installing on every unit) allows a programmer to connect his/her laptop to it without a cable. So many times, it is not so easy to reach the Operator console to connect the programming cable to the HMI/PLC. Combination of our patented On-Line Edit feature and EZminiWifi becomes an exceptionally innovative solution to making changes on HMI screens and PLC ladder logic without having to open up the control cabinet and connecting the Programming cable.

Fastest touch response time of any HMI

All EZTouch HMIs have a super fast response time of less than ½ of a second, that is the response to touching any object on the screen is instantaneous. Its two to four times faster than any other HMI.

Full project simulation on your PC for EZTouch.miniPLC Series.

EZTouch.miniPLC programming software allows you to preview and test your entire HMI project by our Project simulation feature in the software. You can simulate the entire project on your PC itself before loading it up in your EZTouch.miniPLC. It’s a great time saver for programmers.

"C" Level scripting and logic expressions

Each tag in EZTouch HMI can be defined with a logic expression and C level scripting to get mathematical burden off the PLC and reduce the memory requirement in the PLC. Such a high end HMI can reduce the task of PLC to do simple ladder logic, even though the PLC inside the EZTouch.miniPLCs has sufficient horsepower of their own.

Data logging, Recipes, EMails, free chart recorder on Ethernet models.

EZTouch.miniPLC thru its Remote Monitoring and control feature over Ethernet can transmit vast amount of data that can be captured in a remote server eliminating the need for an external chart recoder. EZTouch.miniPLC also offers advanced Recipe Management to program different variables of a Recipe simultaneously. In addition, EZTouch.miniPLC HMIs have another advanced feature of sending emails or texts to designated personnel in the event of an alarm.

On-Screen Recipe Edit

All EZTouch HMIs have an exceptionally innovative feature of on-screen recipe edit where you can edit the recipe on the HMI itself without needing to connect to a laptop with programming software.

Remote Monitoring & Control smart phones & Ethernet

EZTouch.miniPLCs with Ethernet have a remote monitoring and control feature where you can monitor and control the functionality of an HMI remotely via a Smart phone with iOS or Android OS.

Most advanced alarm management and Logging

Alarm management in EZTouch HMIs is at a very advanced level. It has an Alarm database, alarm history, alarm preview, alarm count, alarm message to a marquee, alarm preview, alarm simulation and alarm reset protection.

Dual Driver capability to communicate to other PLC networks.

EZTouch.miniPLCs have the capacity to talk to multiple PLCs at the same time. Therefore, besides, the PLC inside, it can also talk to another network like EtherNet/IP.

Best looking objects and animations.

EZTouch HMIs have the best looking objects simulating real life panel actuators and indicators. And the animation of process is great.

Most Rugged 0.090” thick anti-glare touch screen.

All EZTouch HMIs except the 12” model have an extremely rugged customized touch screen that is 0.090” thick as compared to paper thin touch screens used in our competitor’s products, increasing the durability of the EZTouch touch screen.

Unicode for multiple languages.

All EZTouch.miniPLC HMIs have a Unicode feature for multiple languages, that is each Object can be displayed in different languages. This allows every operator of the HMI to be able to communicate to it in the language of his or her choice.

Unique Visibility tag for best screen space utilization.

EZTouch.miniPLC HMis have an extremely innovative Visibility tag on all objects. Object appears on the screen only if the visibility tag is true. Along with EZTouch.miniPLC’s feature of overlapping objects, visibility tag is a great space saver on the screen.

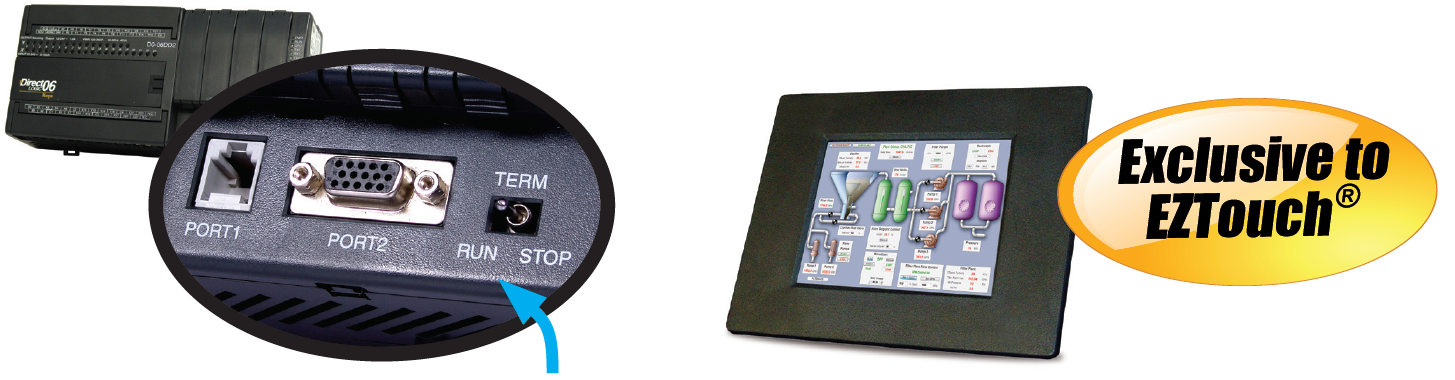

Patented HMI on-line edit, No Machine Shutdown, No downtime!

You wouldn’t buy a PLC today
if it didn’t have On-Line Edit...

...So why should you have to buy a Touch
Panel without On-Line Programming?

Only the EZTouch® has On-Line Programming

1.

After a machine upgrade including a new
PLC and Operator Interface, our System
Integrator asked the Machine Operator what
he would like to see better yet. The Operator
said the new “computer” was great with all
the colors but he missed the old pressure
gauge.

2.

Our System Integrator immediately pulled
out his notebook computer, hooked it up to
the Touch panel, launched his programming
software and put it in On-Line mode.

3.

And then, right in front of the operator’s eyes,
moved the other objects on the screen and
put an Analog Meter exactly to the operator’s
color taste, without ever having to shut down
the machine.

4.

All this took less than 2 minutes.
Operator: “Now that is nice!”
Let’s get these on all the
machines.”

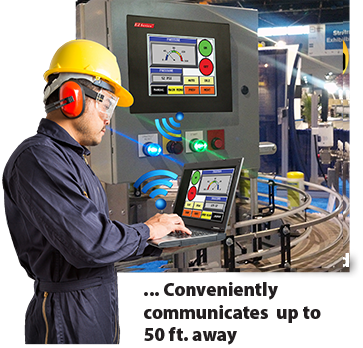

Tiny EZminiWiFi allows laptop to communicate to HMI 50 ft. away

Buy Now

For those in plant operations, this tiny wifi could be a life saver. No need to jump across machines/tools, open control cabinet and find the right cable to connect your laptop and HMI. Connect over EZminiWifi from anywhere convenient 50 ft. away

Tiny EZminiWifi plugs in to RS232 port of any of EZTouch based devices of any kind.

Highly recommended to be installed on every EZTouch panels made since 2001


Buy Now

PLC Communications and Drivers for EZTouchminiPLC with Ethernet

Industrial Ethernet is fast becoming the hardware communication platform for an increasing number of plants all over the world. But Ethernet without the proper supporting protocol (software driver) is like having a great vehicle without tires. Not so with EZAutomation, our EZTouchminiPLC can communicate to all major ethernet networks including but not limited to:

  • Allen-Bradley Ethernet I/P to Controllogix and Compactlogix
  • DF1 protocol over Ethernet for Micrologix & SLC 500 series PLC's
  • Siemens Ethernet ISO over TCP/IP
  • Modbus TCP/IP
  • SRTP for GE networks

EZTouchminiPLC WIth Ethernet Supported Drivers:

Allen Bradley:
A-B Ethernet I/P (MicroLogix 800, Control & Compact Logix)
A-B DF1 over Ethernet (for Micrologix & SLC 500 PLCs)

Automation Direct:
DirectNET (Direct Logic PLCs)
Do-More PLC  (Ethernet)
ECOM Ethernet (Direct Logic PLCs)
Entivity Think&Do (Modbus TCP/IP)
Productivity Driver (Ethernet)

AVG / EZAutomation:
EZ Ethernet

GE:
GE SRTP over Ethernet

Modicon / Schneider:
Modbus TCP/IP

Siemens:
Siemens Ethernet ISO over TCP/IP



Options to Consider

Remote capability over PC, Tablet or Smart Phone (Apple iOS and Google Android)

EZRMC Remote HMI

If you need assistance, be sure to visit the RMC Support page.

iPad Tablet
EZ RMC™ Remote HMI is an application designed for your mobile devices on both iOS and Android platforms, for the monitoring and control of your EZTouch HMIs from EZAutomation.net. Enjoy direct access to your EZTouch HMI from anywhere at the tips of your fingers, on your phone or tablet. The EZ RMC™ Remote HMI is available on both the iTunes App Store as well as the Google Play store.

This App currently works with EZAutomation's EZTouch EZ3 Series, Windows based CE Series HMIs (6" to 10"), Windows 7 based EZWindows HMI (10" or 15"), EZTouch Plus Dedicated OS HMIs (15"), or using our runtime EZ-SOFTHMI software running on a compatible PC. Support for other platforms is under development, and updates will be announced when available.

Features:

  • Realtime View and Control of your EZTouch HMI panel
  • "Pinch" style zoom for more in-depth view of your HMI project
  • Save screenshots directly from the App
  • Multiple user accounts can be configured for each panel project, with multiple levels of security, including either only Viewing ability, or both Viewing and Control
  • Record your most used panels in your Favorites for quick access, and designate one HMI for direct access by default when the App is opened


Compatibility:

  • iOS App works with all iOS devices (iPad, iPhone, iPod Touch) running iOS version 6 or later
  • Android App works with devices running OS version 4.0.3 - Ice Cream Sandwich or later
